NiCad Battery Type 4 Vector EPS

Battery Type 4 (EPS)

This is a NiCad battery type 4 which is about all the information I have on this battery. If there was any information for this illustration then it was left back in 1995 when the illustration was created.

DOWNLOAD & Read
Electric Power Drill Vector EPS

Power Drills (EPS)

A drill is a tool fitted with a cutting tool attachment or driving tool attachment, usually a drill bit or driver bit, used for drilling holes in various materials or fastening various materials together with the use of fasteners. The attachment is gripped by a chuck at one end of the drill and rotated while pressed against the target material. The tip, and sometimes edges, of the cutting tool does the work of cutting into the target material.

DOWNLOAD & Read

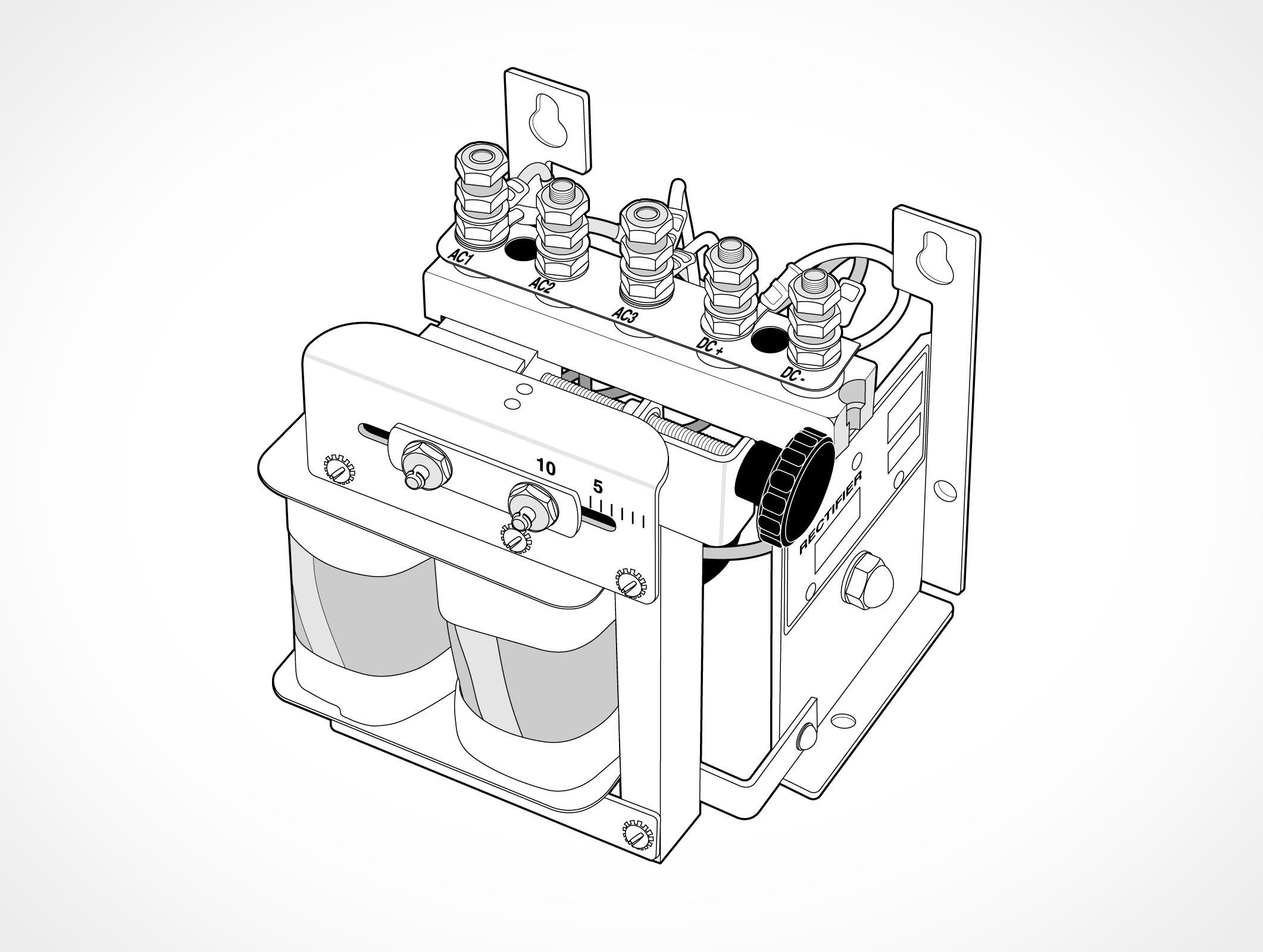

Rectifier Vector EPS

Rectifier (EPS)

A rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification.

DOWNLOAD & Read
NiCad Batteries Vector EPS

Batteries 80 240 450 (EPS)

NiCad Batteries in 80v, 240, and 450v capacity used to power outdoor signal equipment as well as serve as backup power to outside utilities.

DOWNLOAD & Read
Crag RailCharger Maintenance Vector EPS

Cragg Charger Nut Removal (EPS)

Cragg RailCharger is an automatic battery charger. This illustration depicts a workman removing nuts from the front of the Cragg for routine maintence.

DOWNLOAD & Read
